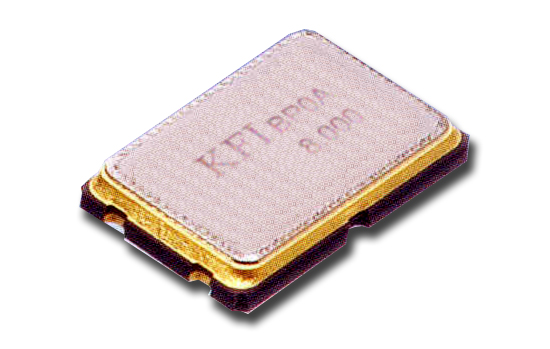

  • Small SMD type clock crystal oscillator units.
  • High precision characteristic covering up to high frequency range.
  • Designed for automatic mounting and reflow soldering.
  • Optionable stand-by function for output: Tri-State output.
  • Supply Voltage Range: 1.8V to 5.0V
  • High stability, low jitter, low power consumption.
  • Lead free parts
Item / Type
Fan Out CMOS TTL
Supply Voltage 50V ± 10%, 3.3V/2.8V/2.5V ± 10% 5.0V ± 10%
Frequency Range 1.0 - 200 MHz 1.0 - 200 MHz
Frequency Stability ±50ppm/ -40 - +85°C, ±25ppm/ -20 - +70°C ±50ppm/ -40 - +85°C, ±25ppm/ -20 - +70°C
Operating Temperature Range ±20ppm/ -10 - +70°C or specify ±20ppm/ -10 - +70°C or specify
Storage Temperature Range -55 - +125°C -55 - +125°C
Supply Current 45mA Max, 30mA Max, 20mA Max 45mA Max, 30mA Max
Aging ±3ppm/year Max. ±3ppm/year Max.
Output Load 15pF/50pF, 15pF/30pF, 15pF 10 TTL gate, 5 TTL gate
Voltage Vol(Max)/Voh(Min) 0.1 Vdd / 0.9 Vdd 0.4V / 2.4V
Symmetry 40 - 60% Max. 40 - 60% Max.
Rise(Tr Max.) / Fall(Tf Max.) Time 10ns(1-10Mhz), 7ns(20-50Mhz), 5ns(>50MHz) Max. 10ns(1-10Mhz), 7ns(20-50Mhz), 5ns(>50MHz) Max.
Startup Time 10ms Max. 10ms Max.
Integrated Jitter rms (12K-20M) 10ps Max. 10ps Max.

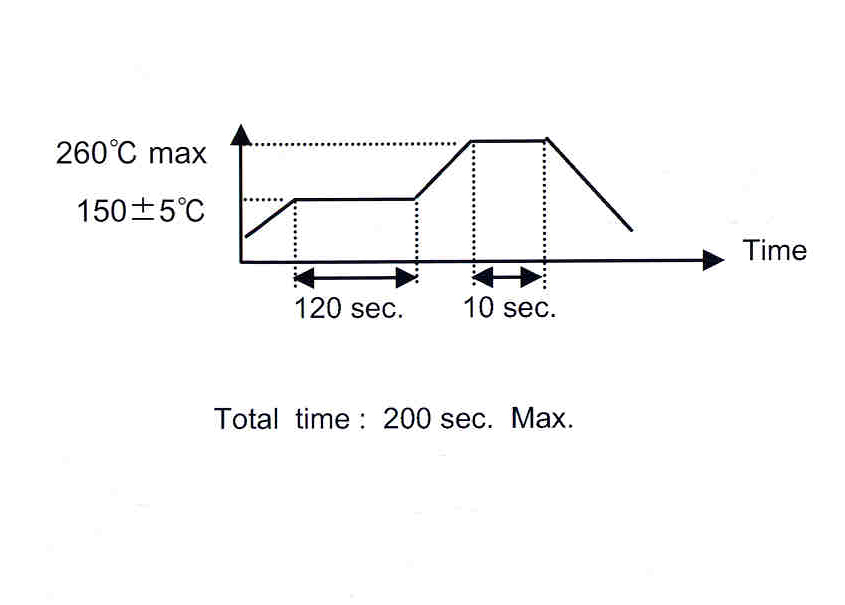

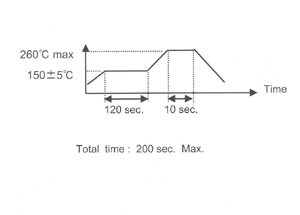

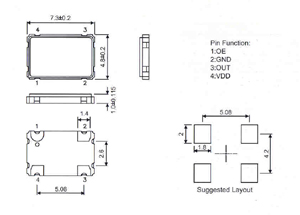

Dimensions    Click For Larger View Reflow Condition    Click For Larger View
