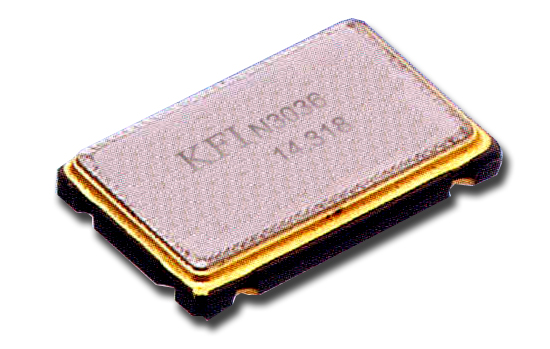

  • Seam sealed crystal units.
  • Small SMD type crystal units.
  • High precision characteristic covering up to high frequency range.
  • High / frequency stability and reliability.
  • Excellent for reducing EMI effect.
  • Lead free parts are available
  • Network, PCMCIA Card, Portable or Handheld electronic products.
Item / Type
Frequency Range 8 - 200 Mhz
Frequency Tolerance (25°C) ±10ppm, ±30ppm or specify
Frequency Stability Over Operating Temperature Range ±10ppm, ±30ppm or specify
Operating Temperature Range -10 - +70°C, -40 - +85°C or specify
Shunt Capacitance 7pF Max. (3.0pF Typical)
Drive Level 1 - 100uW (10uW typical)
Load Capacitance Series, 16pF, 20pF, 30pF, 32pF, or specify
Aging (25°C) ±1ppm, ±3ppm/year Max.
Storage Temperature Range -55 - +125°C

Frequency Range RR (ohms) Vibration mode
8 - 10 Mhz 60 max Fundamental / AT
10 - 48 Mhz 40 max Fundamental / AT
32 - 60 Mhz 100 max 3rd Overtone / AT
60 - 100 Mhz 60 max 3rd Overtone /AT

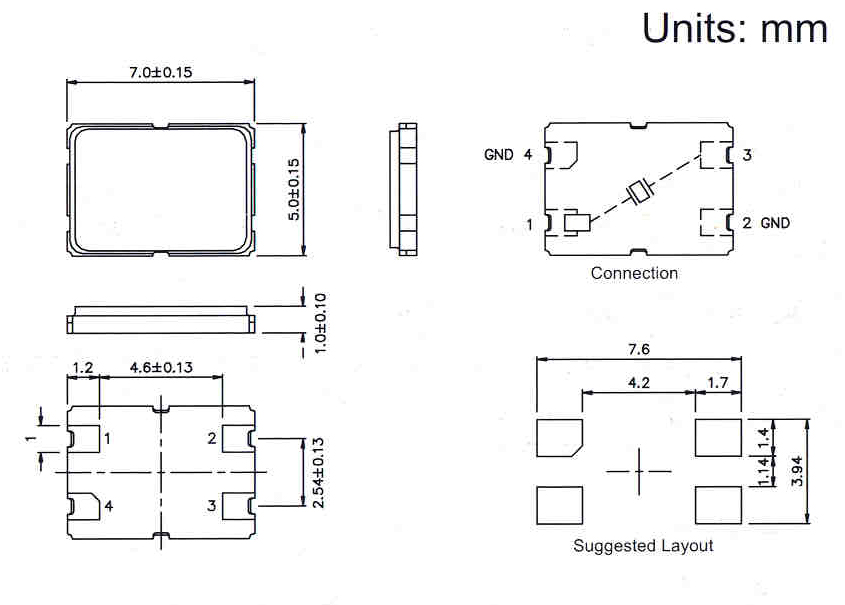

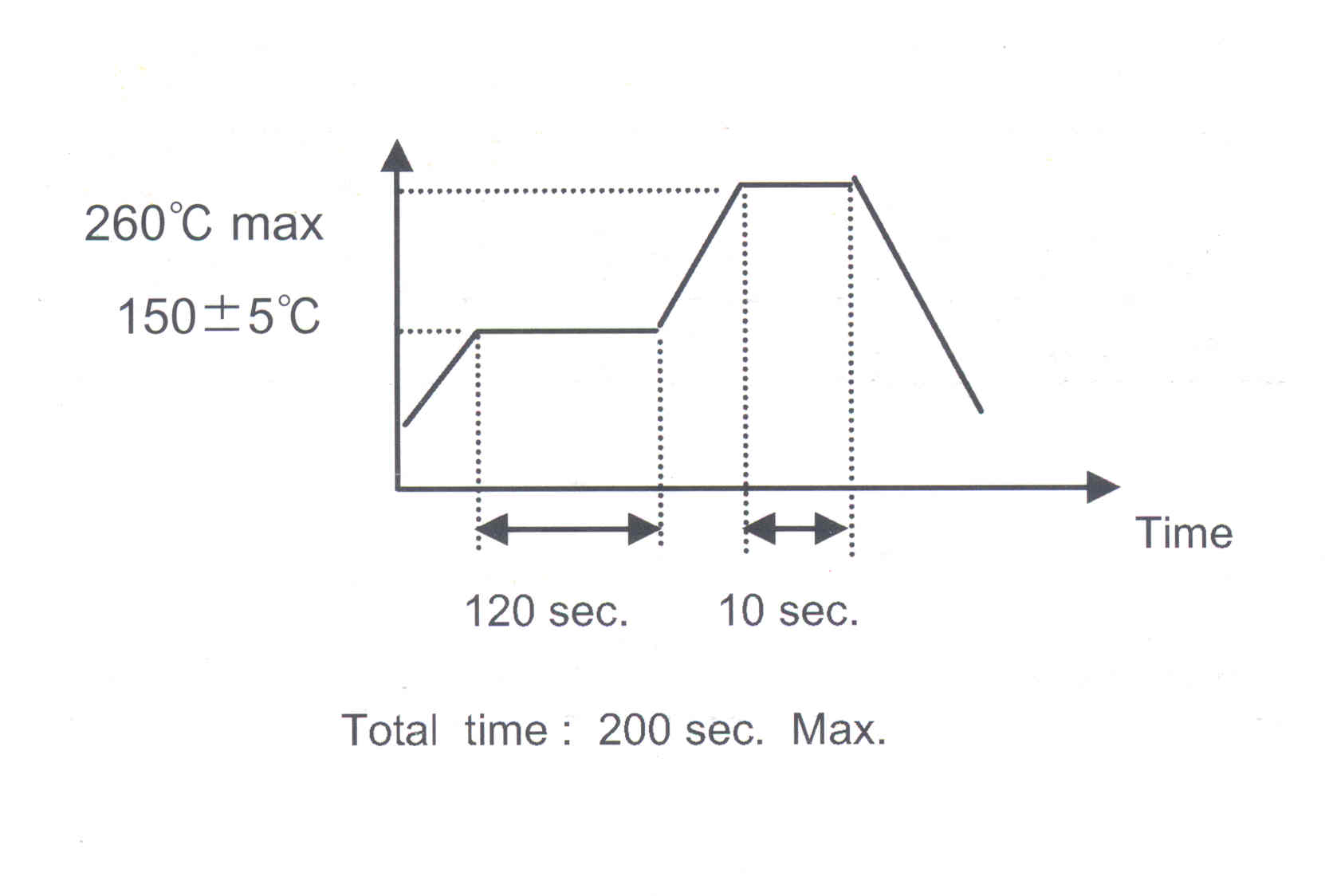

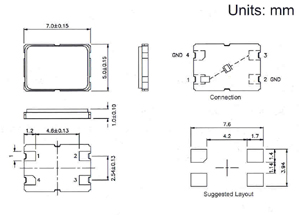

Dimensions    Click For Larger View Reflow Condition    Click For Larger View
