Crystals
   4 x 2.5mm (4 Pad) SMD Glass
   6 x 3.5mm SMD Glass
   7 x 5mm (2 Pad) SMD Glass
   7 x 5mm (4 Pad) SMD Glass
   11.8 x 5.5mm SMD Glass
   5 x 3.2mm SMD Glass
   3.2 x 2.5mm SMD Seam
   4 x 2.5mm SMD Seam
   7 x 5mm SMD Seam
   5 x 3.2mm SMD Seam
   6 x 3.5mm SMD Seam
   HC-49S SMD
   HC-49U Dip
   HC-49S Dip
Oscillators
   7 x 5mm SMD Seam
   5 x 3.2mm SMD Seam
Tuning Fork
   26 2D Series
   26 SMD 2D Series
   38 3D Series
Resonators


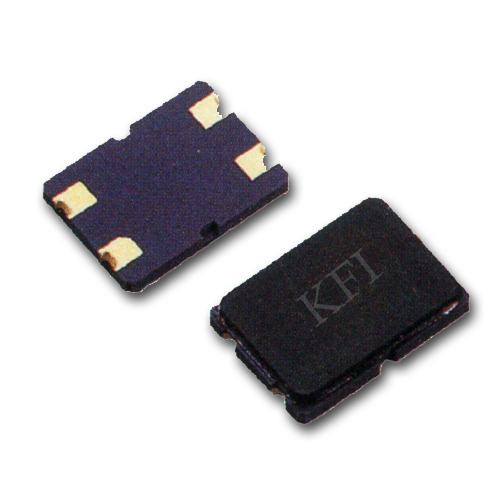

Product Info
  Datasheet (pdf)
  View Larger Size
  Contact Us

  • Leadless type.
  • Automatic mounting.
  • Rugged AT-cut crystal construction.
  • Suitable for solder reflow.
  • Disc Drives, Hand Held Electronics.
Item / Type
Frequency Range 6 - 125 Mhz
Frequency Tolerance (25°C) ±10ppm, ±30ppm, ±50ppm or specify
Frequency Stability Over Operating Temperature Range &±10ppm, ±30ppm, ±50ppm or specify
Operating Temperature Range -10 - +70°C, -40 - +85°C or specify
Shunt Capacitance 5.0pF Max
Drive Level 1 - 100uW (10uW, 100uW typical)
Load Capacitance Series, 16pF, 20pF, 30pF, 32pF, or specify
Aging (25°C) ±3ppm, ±5ppm/year Max.
Storage Temperature Range -55 - +125°C

Frequency Range RR (ohms) Vibration mode
6 - 8 Mhz 120 max Fundamental / AT
8 - 10 Mhz 70 max Fundamental / AT
10 - 20 Mhz 60 max Fundamental / AT
20 - 50 Mhz 40 max Fundamental / AT
50 - 80 Mhz 80 max 3rd Overtone / AT
80 - 125 Mhz 60 max 3rd Overtone / AT

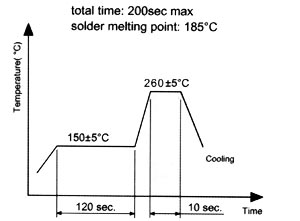

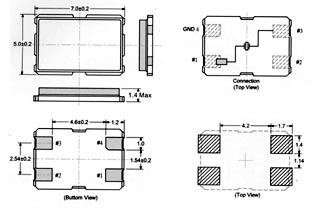

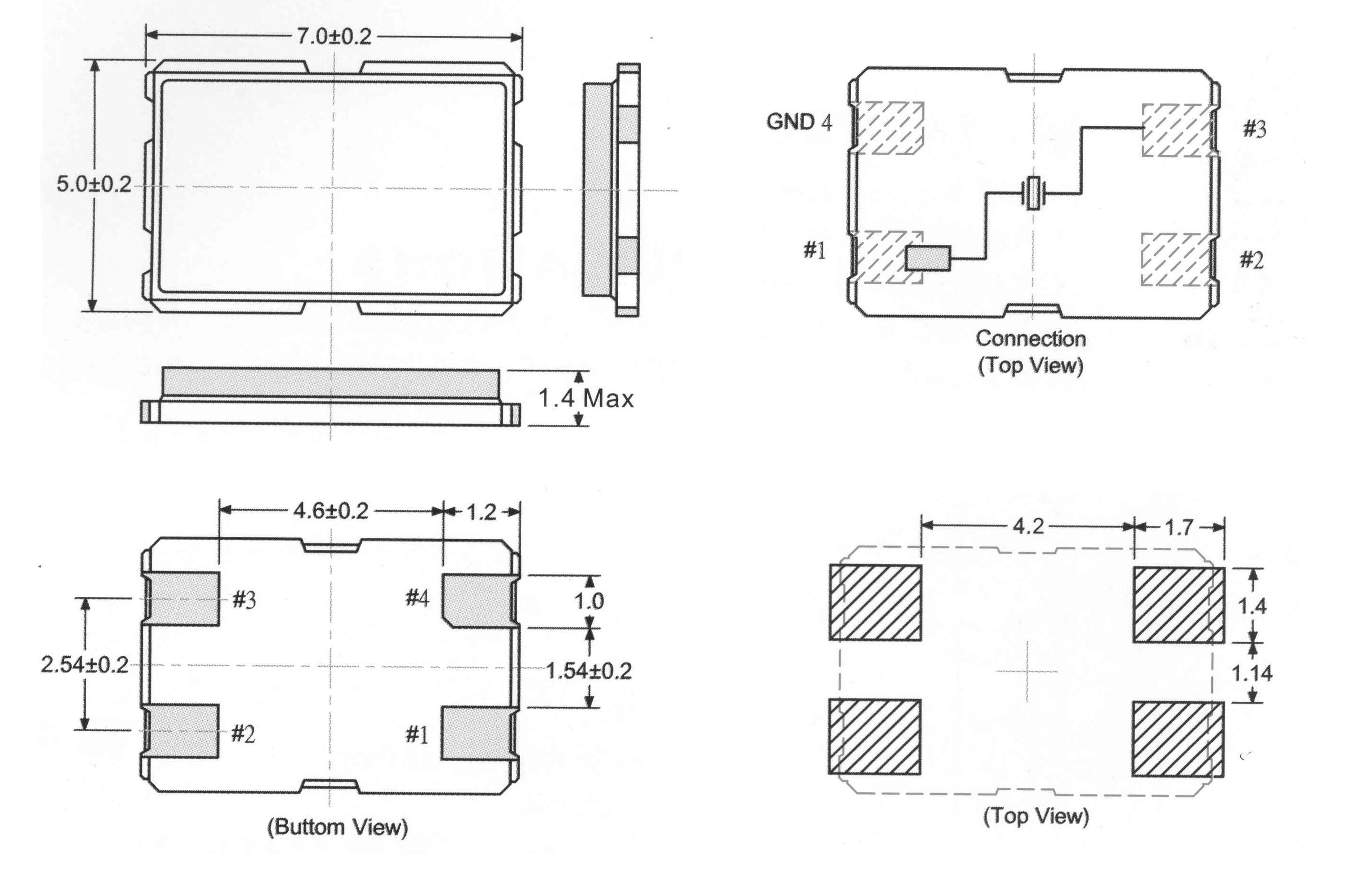

Dimensions    Click For Larger View Reflow Condition    Click For Larger View
