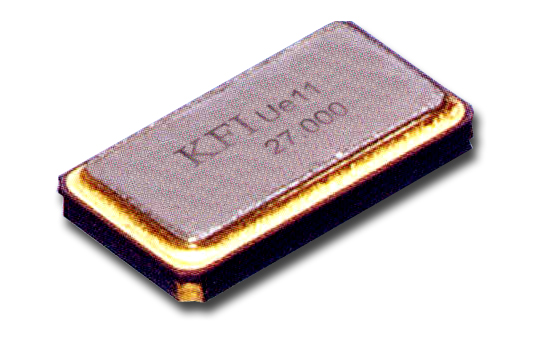

  • Seam Sealed Crystal Units
  • Smaller SMD type crystal units.
  • High precision characteristic and high frequency stability.
  • Excellent for reducing EMI effect.
  • Lead free parts are available
Item / Type
Frequency Range 12 - 48 MHz
Frequency Tolerance (25°C) ±10ppm, ±30ppm, or specify
Frequency Stability Over Operating Temperature Range ±10ppm, ±30ppm, or specify
Operating Temperature Range -10 - +70°C, -40 - +85°C, or specify
Shunt Capacitance 7pF Max (3.0pF Typical)
Drive Level 1 - 100uW (10uW typical)
Load Capacitance Series, 16pF, 20pF, 30pF, 32pF or specify
Aging (25°C) ±1ppm, ±3ppm/year Max.
Storage Temperature Range -55 - +125°C

Fundamental 12 20 24.576 27 36
40 48 0 0 0

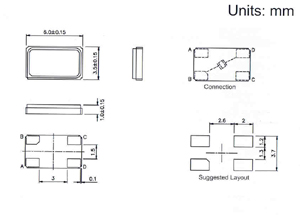

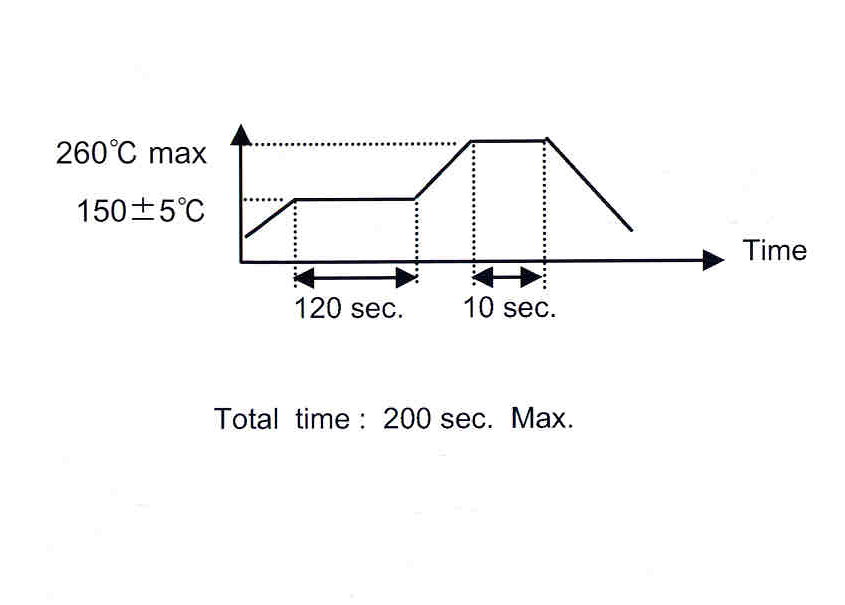

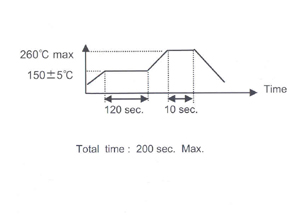

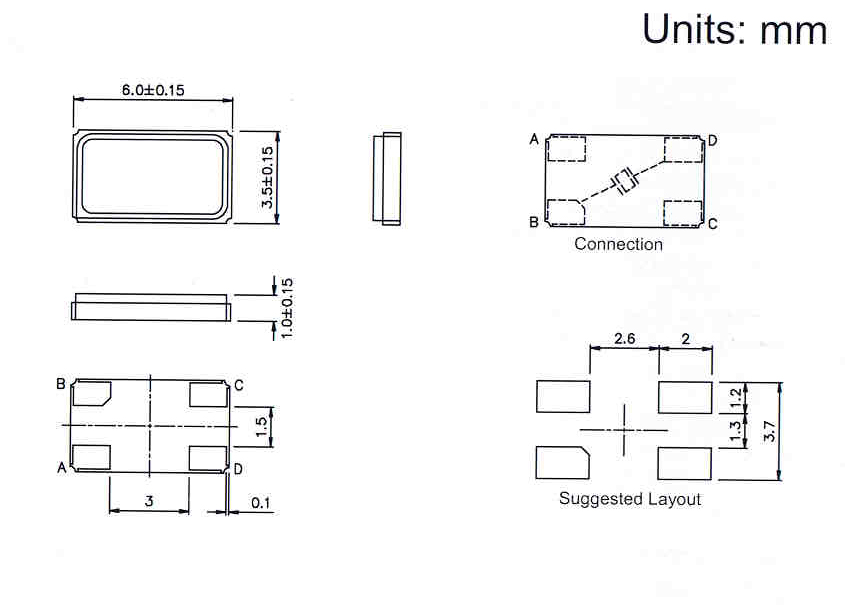

Dimensions    Click For Larger View Reflow Condition    Click For Larger View
