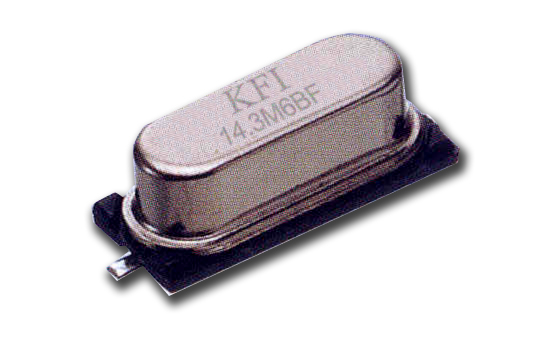

  • Surface mount type crystal units.
  • 2 types (S2: 3.0mm, S3: 3.8mm height) can be applied by customer.
  • A great number of standard frequencies.
  • High frequency pullability and low equivalent series resistance.
  • Lead free parts are available
Item / Type
Frequency Range 3.2 - 70 MHz
Frequency Tolerance (25°C) ±30ppm or specify
Frequency Stability Over Operating Temperature Range ±30ppm or specify
Operating Temperature Range -10 - +60°C or specify
Shunt Capacitance 7pF Max
Drive Level 1 - 500uW (50uW typical)
Load Capacitance Series, 16pF, 20pF, 30pF, 32pF or specify
Aging (25°C) ±3ppm/year Max.
Storage Temperature Range -40 - +85°C

Fundamental 10 11.0592 12 14.318 16
18.432 20 24 24.576 25
27 30 36 40 48
3rd Overtone 40 48 50 80 0

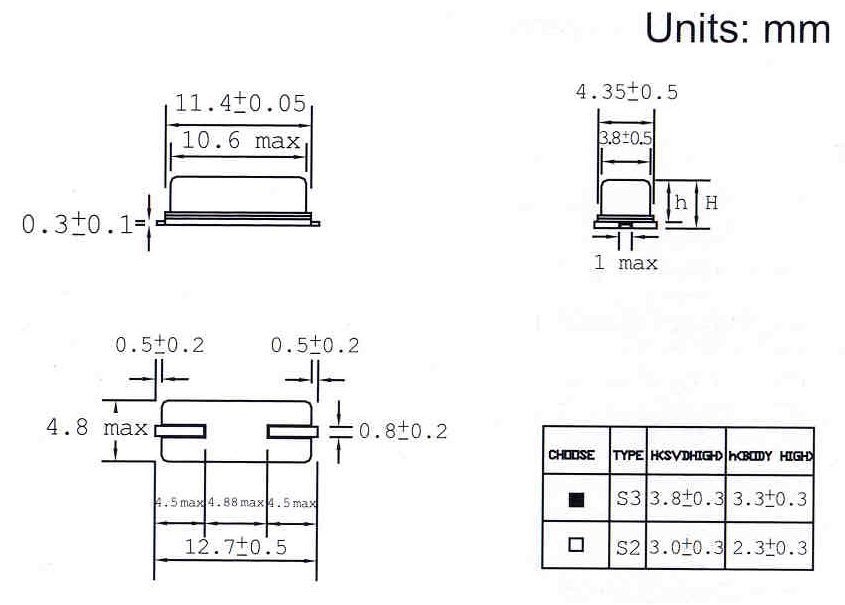

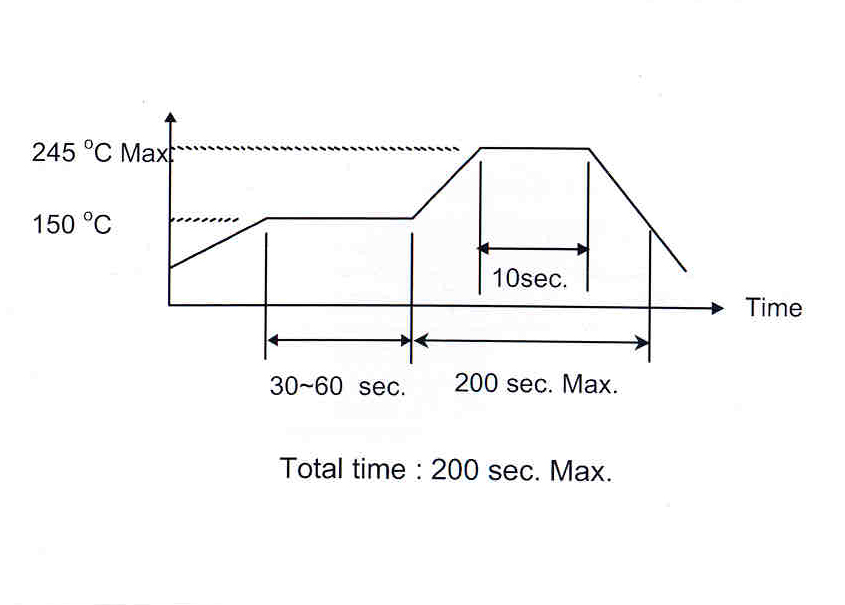

Dimensions    Click For Larger View Reflow Condition    Click For Larger View
