  • Low power-consumption resonators.
  • Standard clock oscillation for microprocessors with excellent frequency stability.
  • Clock functions, industrial equipment, consumer/household products, and wristwatches.
Item / Type
Frequency Range 32.768 kHz, 15 - 150kHz, 3.579 - 28.000 MHz
Frequency Tolerance (25°C) ±20 ppm, ±30 ppm, ±50 ppm, ±100 ppm or specify
Frequency Stability Over Operating Temperature Range ±20 ppm, ±30 ppm, ±50 ppm, ±100 ppm or specify
Operating Temperature Range -10 - +60°C or specify
Shunt Capacitance 1.3pF, 7.0 pF Max
Drive Level 1.0 ± 0.2 uW (Typical), 300uW max. (Fundamental)
Load Capacitance Series, 12.5pF, 12pF, 16pF, 20pF, 32pF (Fundamental)
Aging (25°C) ±5ppm/year Max.
Storage Temperature Range -30 - +80°C

Vibration Mode in different Frequency Range and Series Resistance
Frequency Range RR (ohms) Vibration mode
3.579 - 3.7 Mhz 200 max Fundamental / AT
3.7 - 4.0 Mhz 180 max Fundamental / AT
4.0 - 4.1 Mhz 150 max Fundamental / AT
4.1 - 5.0 Mhz 120 max Fundamental / AT
5.0 - 7.0 Mhz 100 max Fundamental / AT
7.0 - 10.0 Mhz 80 max Fundamental / AT
10.0 - 12.0 Mhz 70 max Fundamental / AT
12.0 - 14.0 Mhz 60 max Fundamental / AT
14.0 - 16.0 Mhz 50 max Fundamental / AT
16.0 - 28.0 Mhz 40 max Fundamental / AT

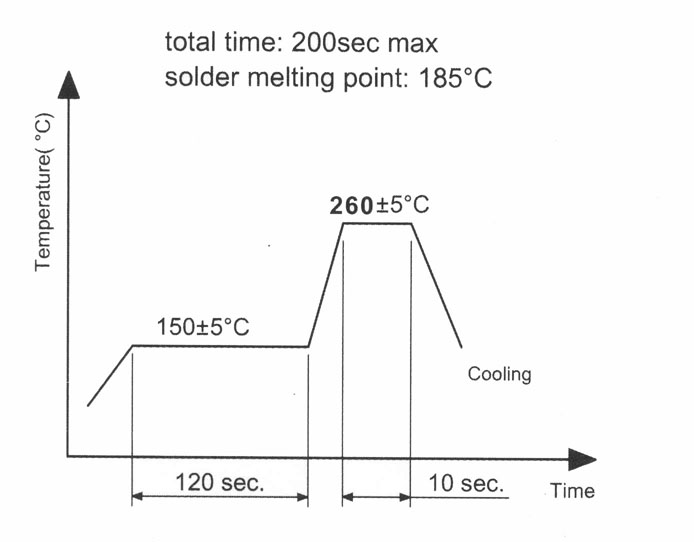

Dimensions    Click For Larger View Reflow Condition    Click For Larger View

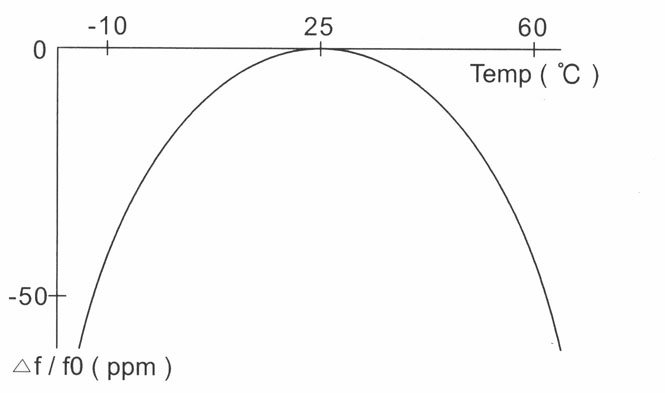

Frequency Stability VS. Tempeature    Click For Larger View
