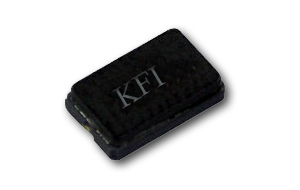

Product Info
  Datasheet (pdf)
  View Larger Size
  Contact Us

  • High Precision and reliability with excellent heat resistance.
  • Suitable for solder reflow .
  • Rugged AT-cut crystal construction.
  • Bluetooth Wireless, Wireless LAN.
Item / Type
Frequency Range 12 - 50 MHz
Frequency Tolerance (25°C) ±10ppm - ±50ppm or specify
Frequency Stability Over Operating Temperature Range ±10ppm - ±50ppm or specify
Operating Temperature Range -30 - +85°C or specify
Shunt Capacitance 5.0pF Max
Drive Level 10uW (300uW max)
Load Capacitance 10pF, 13pF or specify
Aging (25°C) ±3ppm, ±5ppm/year Max.
Storage Temperature Range -40 - +85°C

Frequency Range RR (ohms) Vibration mode
12 - 16 Mhz 80 max Fundamental / AT
16 - 30 Mhz 60 max Fundamental / AT
30 - 50 Mhz 40 max Fundamental / AT

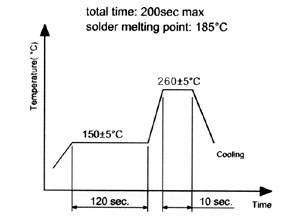

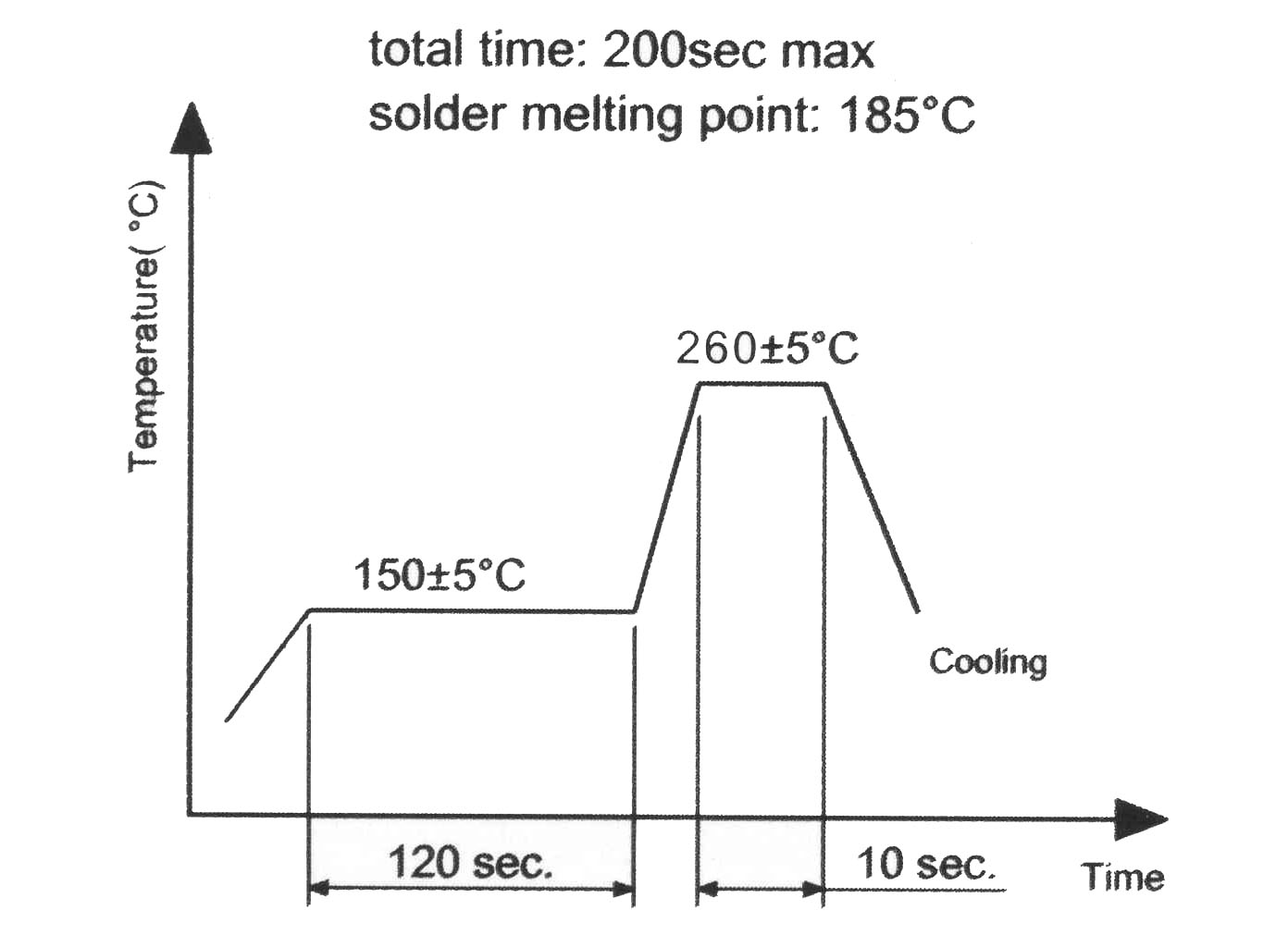

Dimensions    Click For Larger View Reflow Condition    Click For Larger View
