Product Info
  Datasheet (pdf)
  View Larger Size
  Contact Us

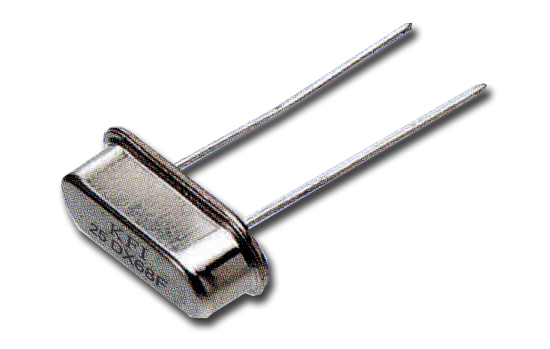

  • Resistance welded type crystal units.
  • Lower profit product of HC-49U type.
  • A great number of standard frequencies.
  • High frequency pullability and lower equivalent series resistance.
  • Lower cost and highly mass production capacity.
  • Lead free parts are available
Item / Type
Frequency Range 3.2 - 90 MHz
Frequency Tolerance (25°C) ±30ppm or specify
Frequency Stability Over Operating Temperature Range ±30ppm or specify
Operating Temperature Range -10 - +60°C or specify
Shunt Capacitance 7pF Max
Drive Level 1 - 500uW (50uW typical)
Load Capacitance Series, 16pF, 20pF, 30pF, 32pF or specify
Aging (25°C) ±3ppm/year Max.
Storage Temperature Range -40 - +85°C

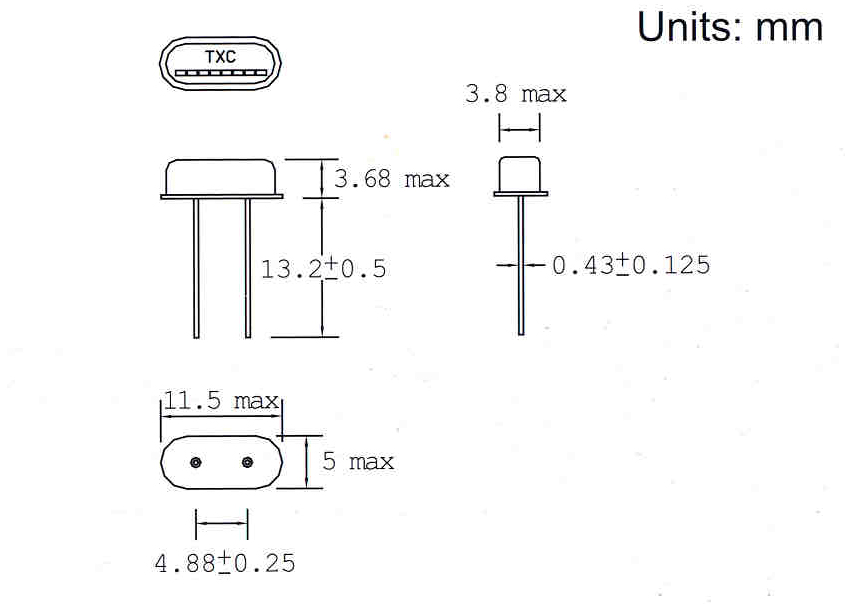

Dimensions    Click For Larger View Package for Option    Click For Larger View
