Product Info
  Datasheet (pdf)

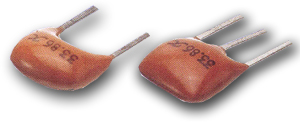

  View Larger Size (Dip)

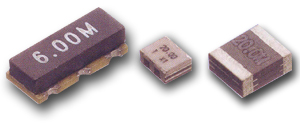

  View Larger Size (SMD)

  • Low Cost.
  • Dip and SMD type are available.
  • Built-in load capacitance tpe for option.
  • Suitable for the application of CD-ROM, DVD, ROM, MP3, HDD.
Item / Type (Resonator Dip)
Frequency Range 1.8 - 60MHz
Frequency Tolerance ± 0.5
Frequency Stability ± 0.3
Operating Temperature Range -20 - +80°C or specify
Load Capacitance 12pF - 30pF or specify, Built in capacitors
Resonant Impedance Max. (Ω) 40 - 70 Max
Aging (%) ±0.3/year Max.

Item / Type (Resonator SMD)
Frequency Range 7 - 50MHz, 20 - 40MHz
Frequency Tolerance ± 0.5, ± 0.3
Frequency Stability ± 0.3
Operating Temperature Range -20 - +80°C or specify
Load Capacitance Built in capacitors
Resonant Impedance Max. (Ω) 25 - 40 Max, 40 Max
Aging (%) ±0.3/year Max.

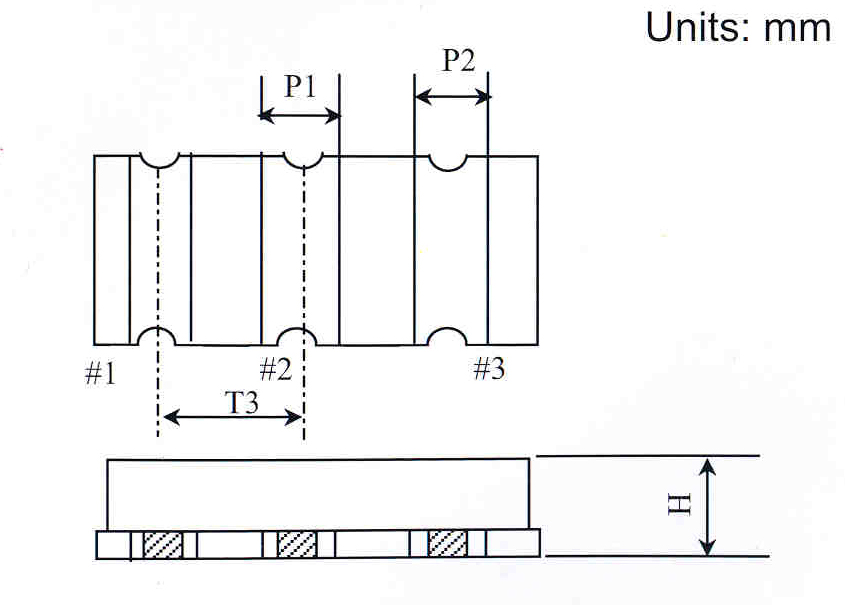

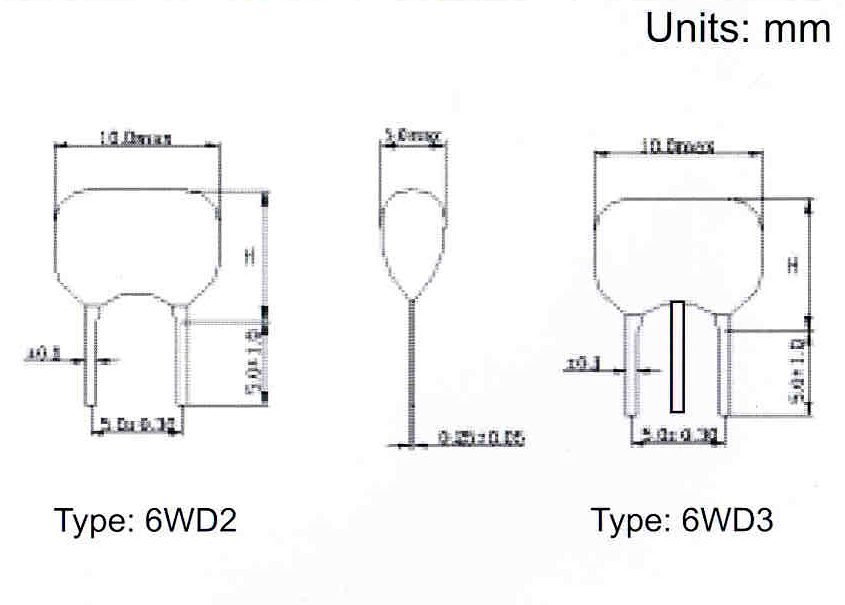

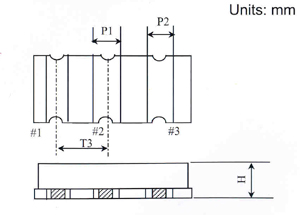

Dimensions (Dip)    Click For Larger View Dimensions (SMD)    Click For Larger View
