  • Tuning Fork crystal resonator.
  • Good for automatic mounting and reflow soldering.
  • Ideal for low cost SMD application
  • Suitable for Various Application, Mobile Telecommunications Equipment.
Item / Type
Frequency Range 32.768 khz (28 - 80kHz)
Frequency Tolerance (25°C) ±10 ppm, ±20 ppm, ±30 ppm, ±100 ppm or specify
Frequency Stability Over Operating Temperature Range Please refer to Frequency Stability Over Various Temperature diagram below
Operating Temperature Range -40 - +85°C or specify
Shunt Capacitance 1.1 pF Typical
Drive Level 1.0 ± 0.2 uW (Typical)
Load Capacitance 12.5pF or specify
Aging (25°C) ±5ppm/year Max.
Storage Temperature Range -40 - +85°C

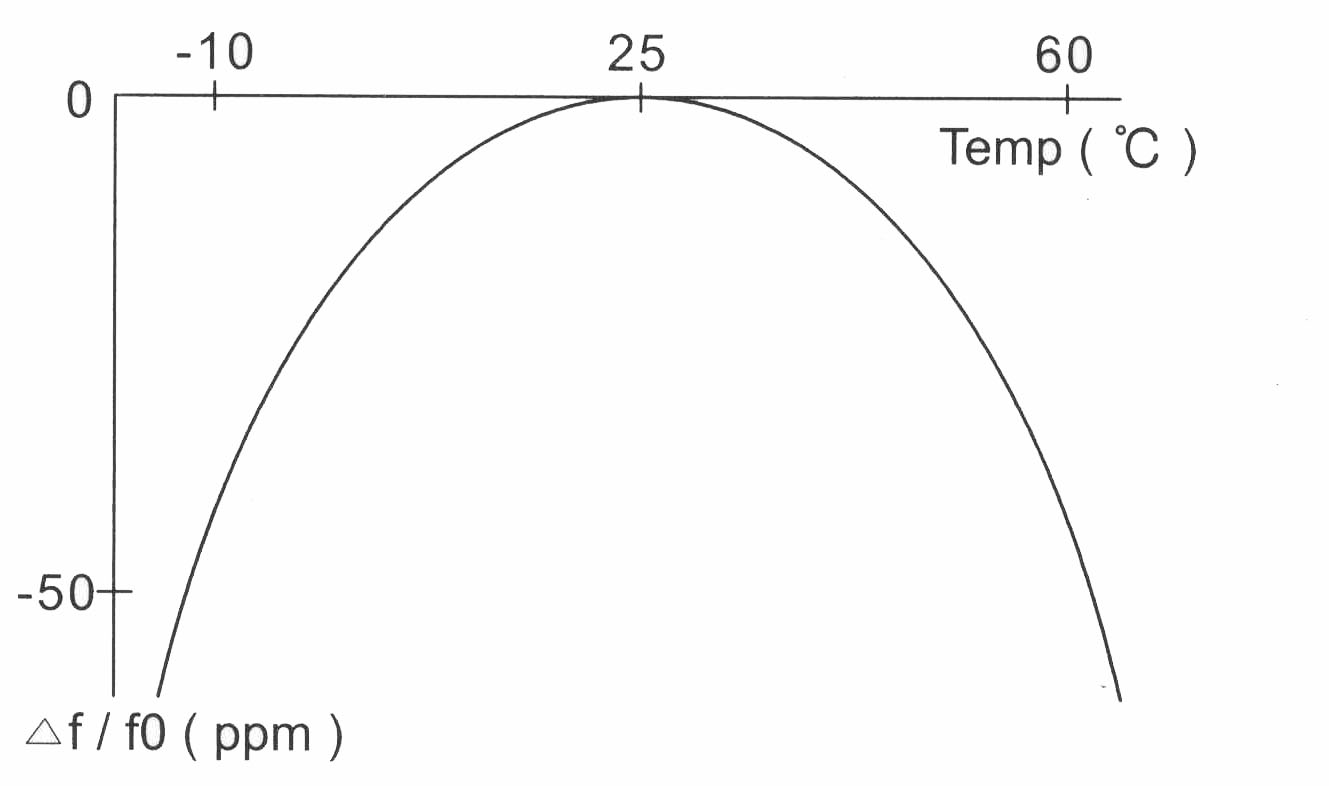

Dimensions    Click For Larger View Frequency Stability Over Operating Temperature Range    Click For Larger View
