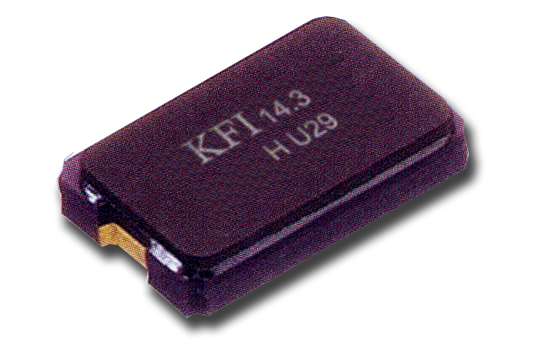

  • Small SMD glass sealed crystal units.
  • High reliable environmental performance.
  • Tight tolerance and stability parts are available.
  • Designed for automatic mounting and reflow soldering.
  • Reasonable cost and good delivery performance.
  • Lead free parts are available
Item / Type
Frequency Range 10 - 80 MHz
Frequency Tolerance (25°C) ±30ppm or specify
Frequency Stability Over Operating Temperature Range ±50ppm or specify
Operating Temperature Range -10 - +70°C or specify
Shunt Capacitance 5pF Max
Drive Level 1 - 100uW (50uW typical)
Load Capacitance Series, 6pF, 10pF, 16pF, 20pF or specify
Aging (25°C) ±3ppm/year Max.
Storage Temperature Range -40 - +85°C

Fundamental 10 11.0592 12 14.318 16
18.432 20 24 24.576 25
27 30 36 40 48
3rd Overtone 40 48 50 80 0

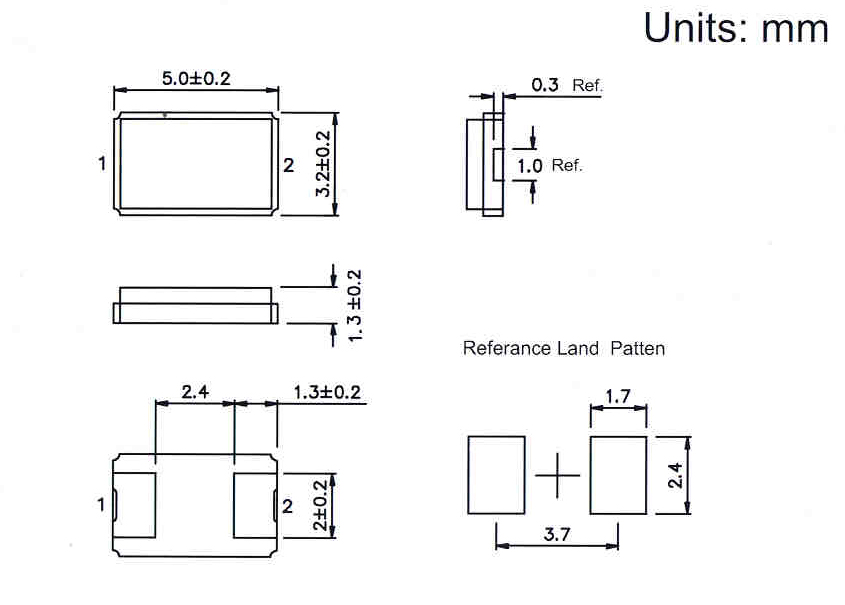

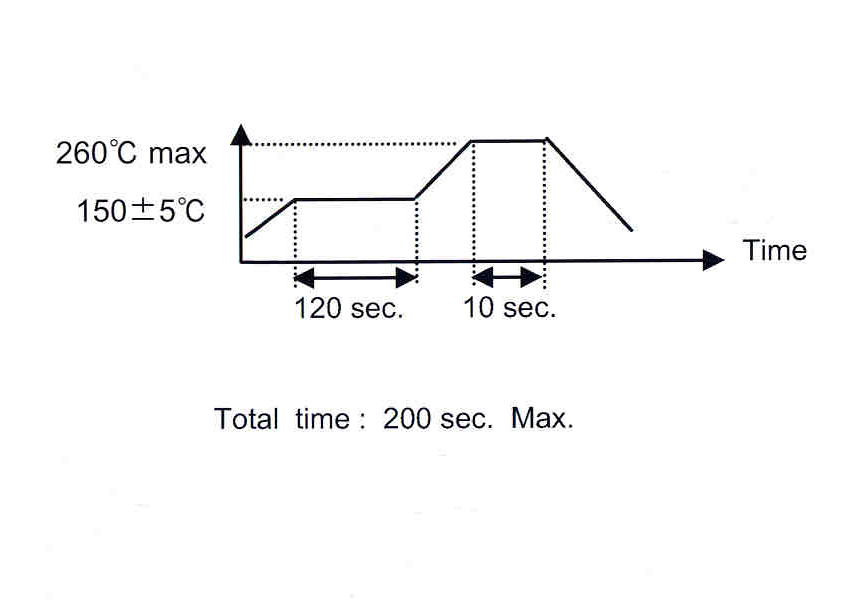

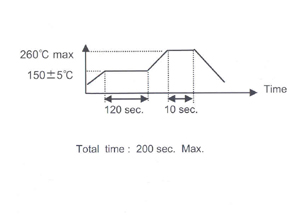

Dimensions    Click For Larger View Reflow Condition    Click For Larger View
