Product Info
  Datasheet (pdf)
  View Larger Size
  Contact Us

  • Low power-consumption resonators.
  • Standard clock oscillation for microprocessors with excellent frequency stability.
  • Clock functions, industrial equipment, consumer/household products, and wristwatches.
Item / Type
Frequency Range 32.768 kHz, 28 - 80kHz
Frequency Tolerance (25°C) ±20ppm or specify
Frequency Stability Over Operating Temperature Range ±20ppm or specify
Operating Temperature Range -10 - +60°C or specify
Shunt Capacitance 0.85pf - 1.1pF, 2pF Max
Drive Level 1.0 ± 0.2 uW (Typical)
Load Capacitance 12.5pF
Aging (25°C) ±5ppm/year Max.
Storage Temperature Range -20 - +70°C

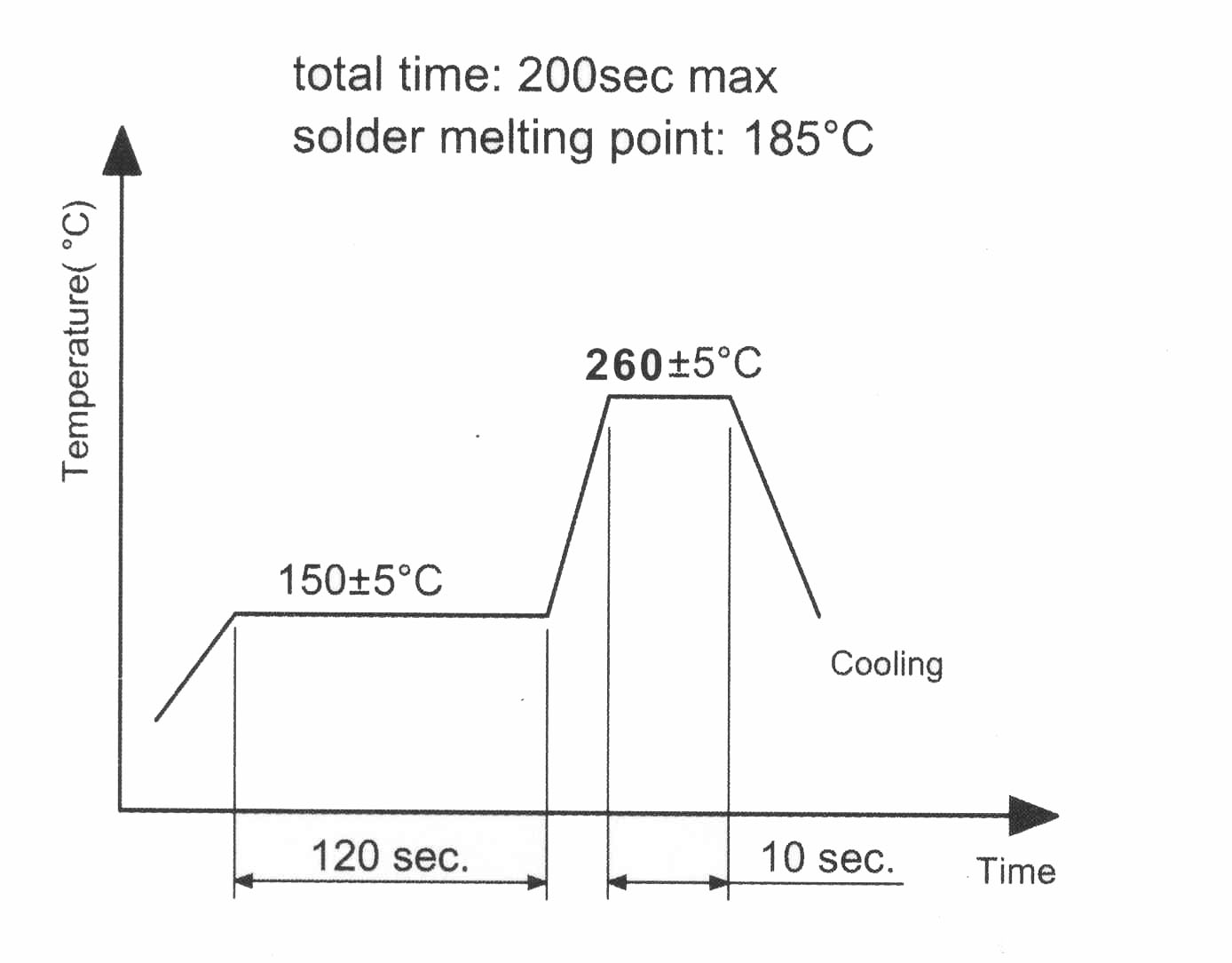

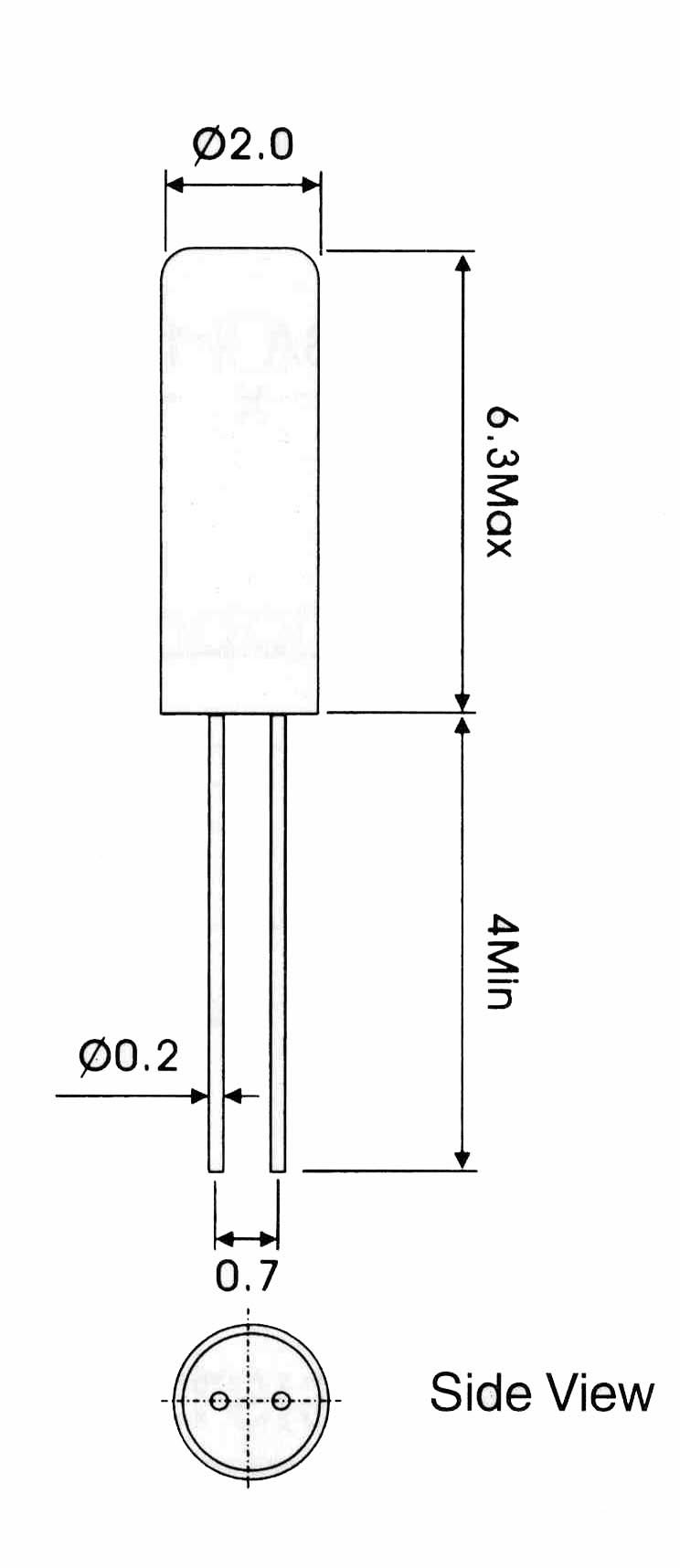

Dimensions    Click For Larger View Reflow Condition    Click For Larger View

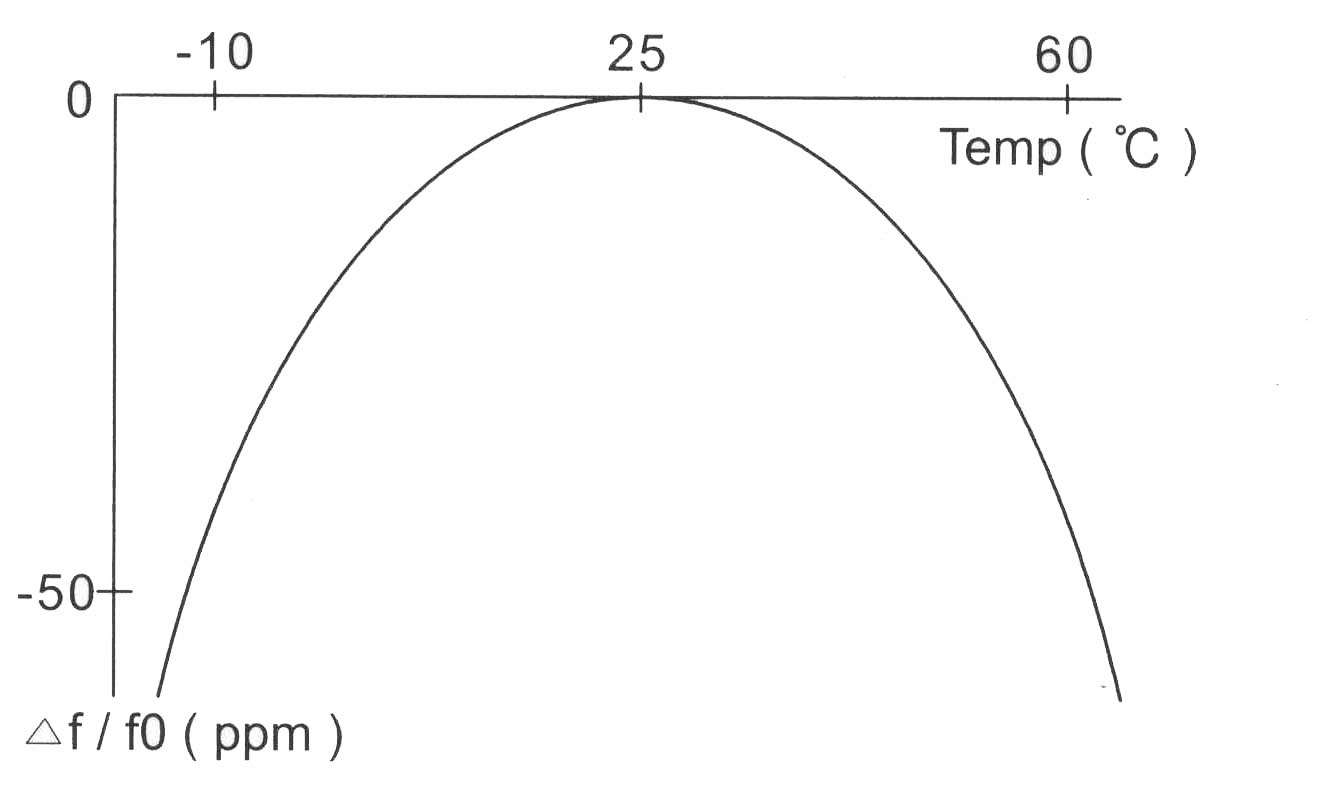

Frequency Stability VS. Tempeature    Click For Larger View
