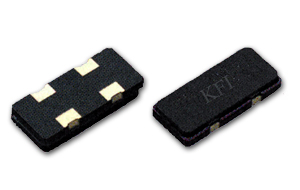

  • Low temperature melt glass.
  • Excellent heat resistance and high reliability.
  • Network, Portable or Handheld electronic products.
Item / Type
Frequency Range 3.5 - 33 MHz (Fundamental)
26 - 55 MHz (3rd Overtone)
Frequency Tolerance (25°C) ±10ppm, ±30ppm, ±50ppm, ±100ppm or specify
Frequency Stability Over Operating Temperature Range ±10ppm, ±30ppm, ±50ppm, ±100ppm or specify
Operating Temperature Range -40 - +85°C or specify
Shunt Capacitance 7pF Max. (3.0pF Typical)
Drive Level 1 - 100uW (10uW typical)
Load Capacitance Series, 8pF, 10p, 12pF, 16pF, 18pF, 20pF, or specify
Aging (25°C) lusmn;3ppm, ±5ppm/year Max.
Storage Temperature Range -55 - +125°C

Frequency Range RR (ohms) Vibration mode
3.5 - 4 MHz 150 max Fundamental / AT
4 - 5 MHz 100 max Fundamental / AT
5 - 12 MHz 80 max Fundamental / AT
12 - 20 MHz 60 max Fundamental / AT
20 - 26 MHz 40 max Fundamental / AT
26 - 33 MHz 60 max Fundamental / AT
26 - 55 MHz 100 max 3rd Overtone

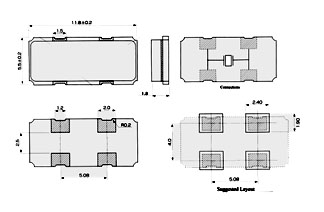

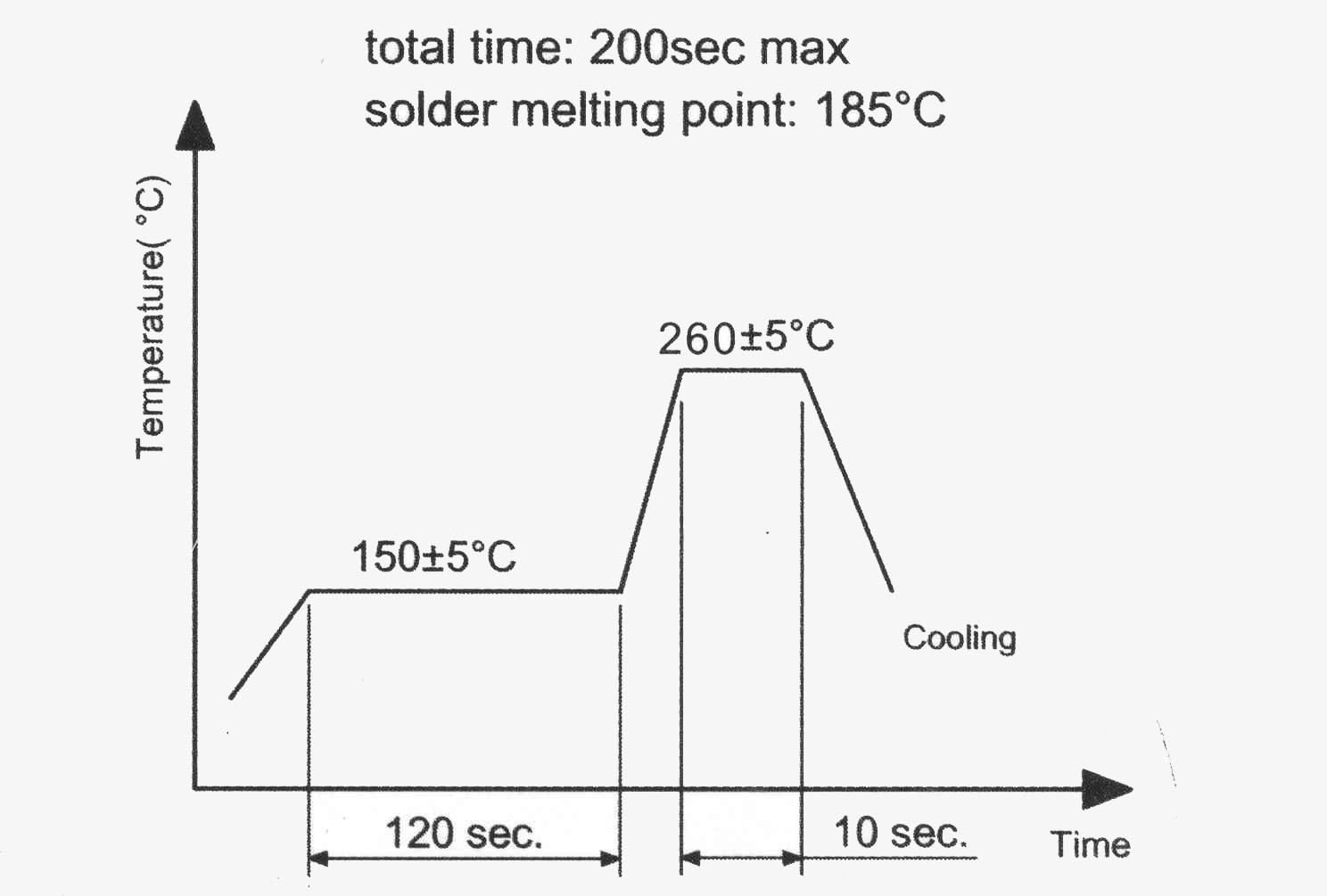

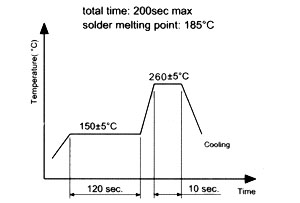

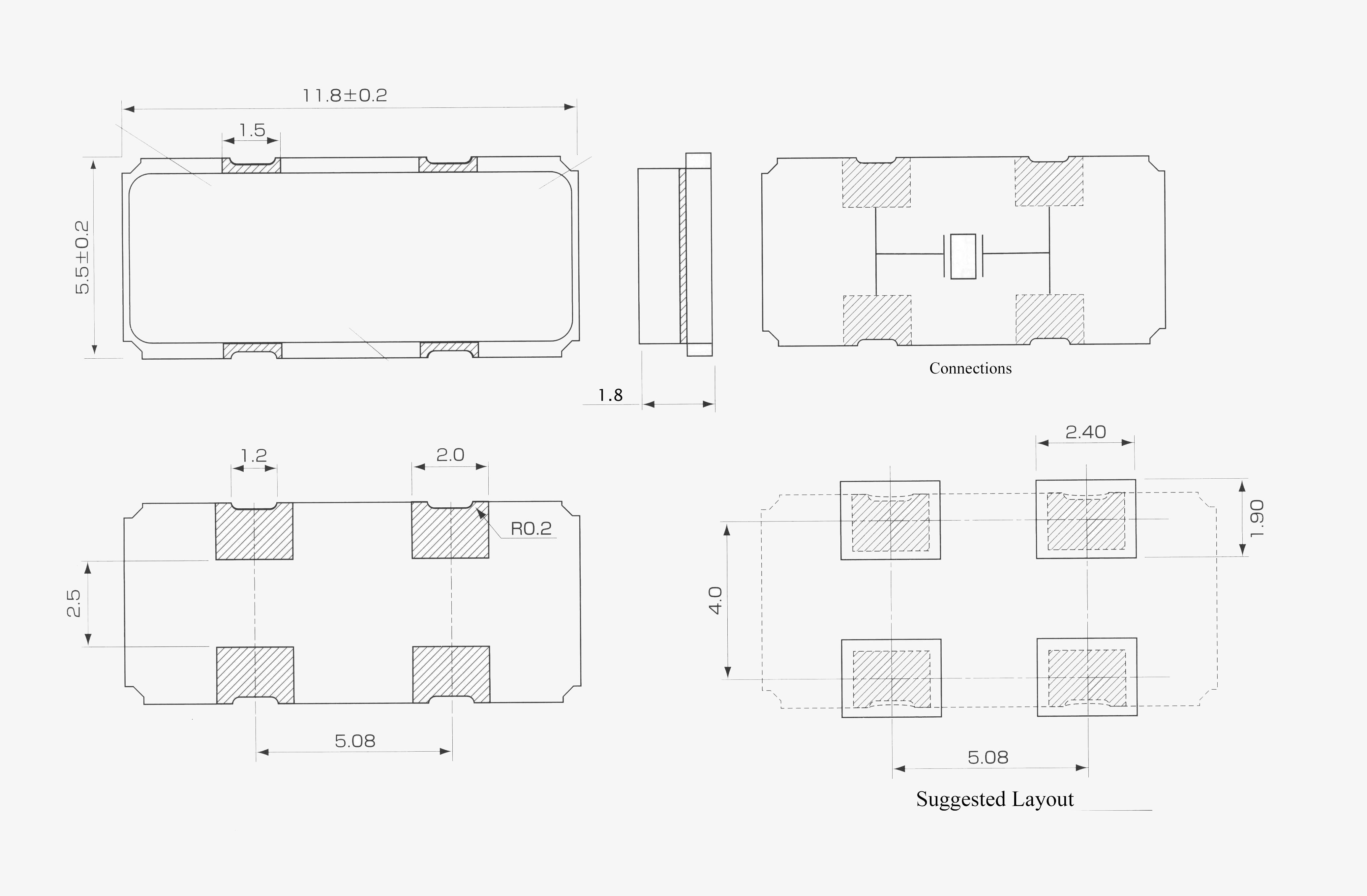

Dimensions    Click For Larger View Reflow Condition    Click For Larger View
