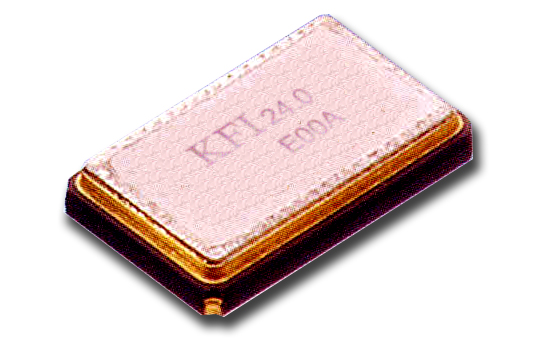

  • Seam sealed crystal units.
  • Ultra small SMD type crystal units.
  • High precision characteristic covering up to wide frequency range.
  • Higher frequency stability and reliability.
  • Excellent for reducing EMI effect.
  • Lead free parts are available
Item / Type
Frequency Range 12 - 100 MHz
Frequency Tolerance (25°C) ±30ppm or specify
Frequency Stability Over Operating Temperature Range ±30ppm or specify
Operating Temperature Range -10 - +70°C or specify
Shunt Capacitance 5pF Max
Drive Level 1 - 100uW (10uW typical)
Load Capacitance Series, 10pF, 16pF, 20pF or specify
Aging (25°C) ±3ppm/year Max.
Storage Temperature Range -55 - +125°C

Fundamental 11.2896 12 13 14 14.318 14.7456
15.36 16 16.384 18.432 19.2 19.5
19.68 19.8 20.48 21.25 22 24
24.576 25 26 26.59 27 29.498
30 32 36 40 44 48
3rd Overtone 40 44 48 80 100 100

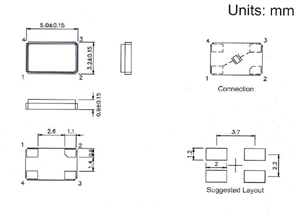

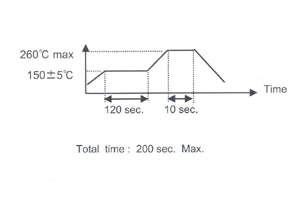

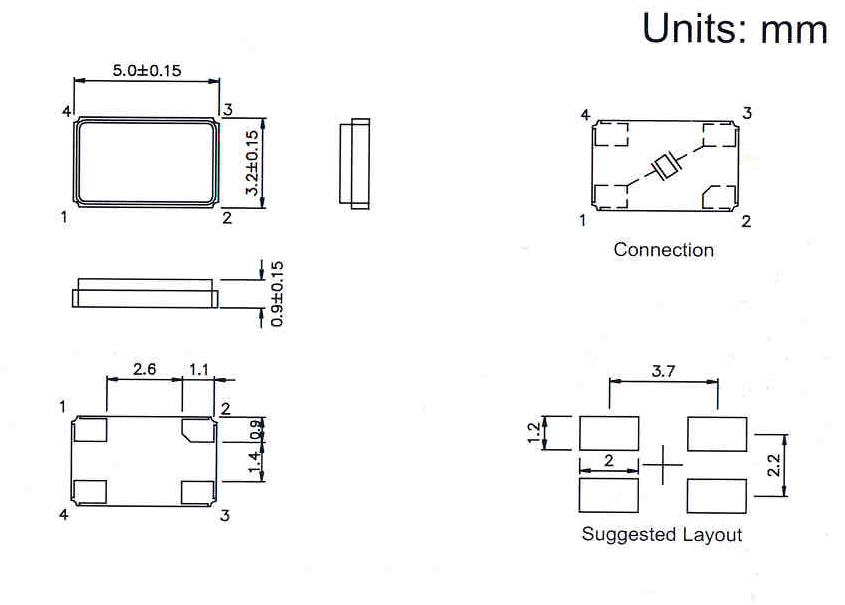

Dimensions    Click For Larger View Reflow Condition    Click For Larger View
