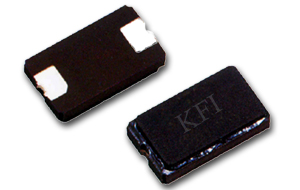

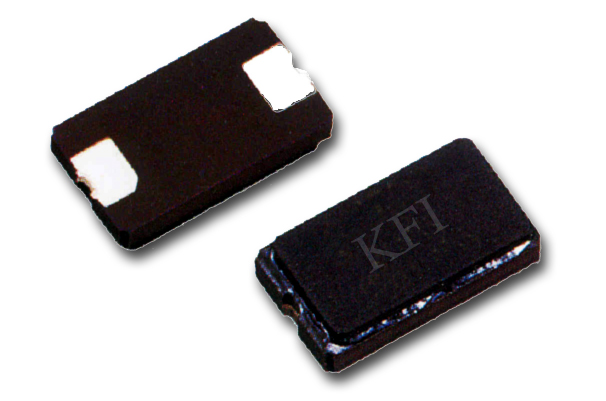

- Leadless type.
- Automatic mounting.
- Rugged AT-cut crystal construction.

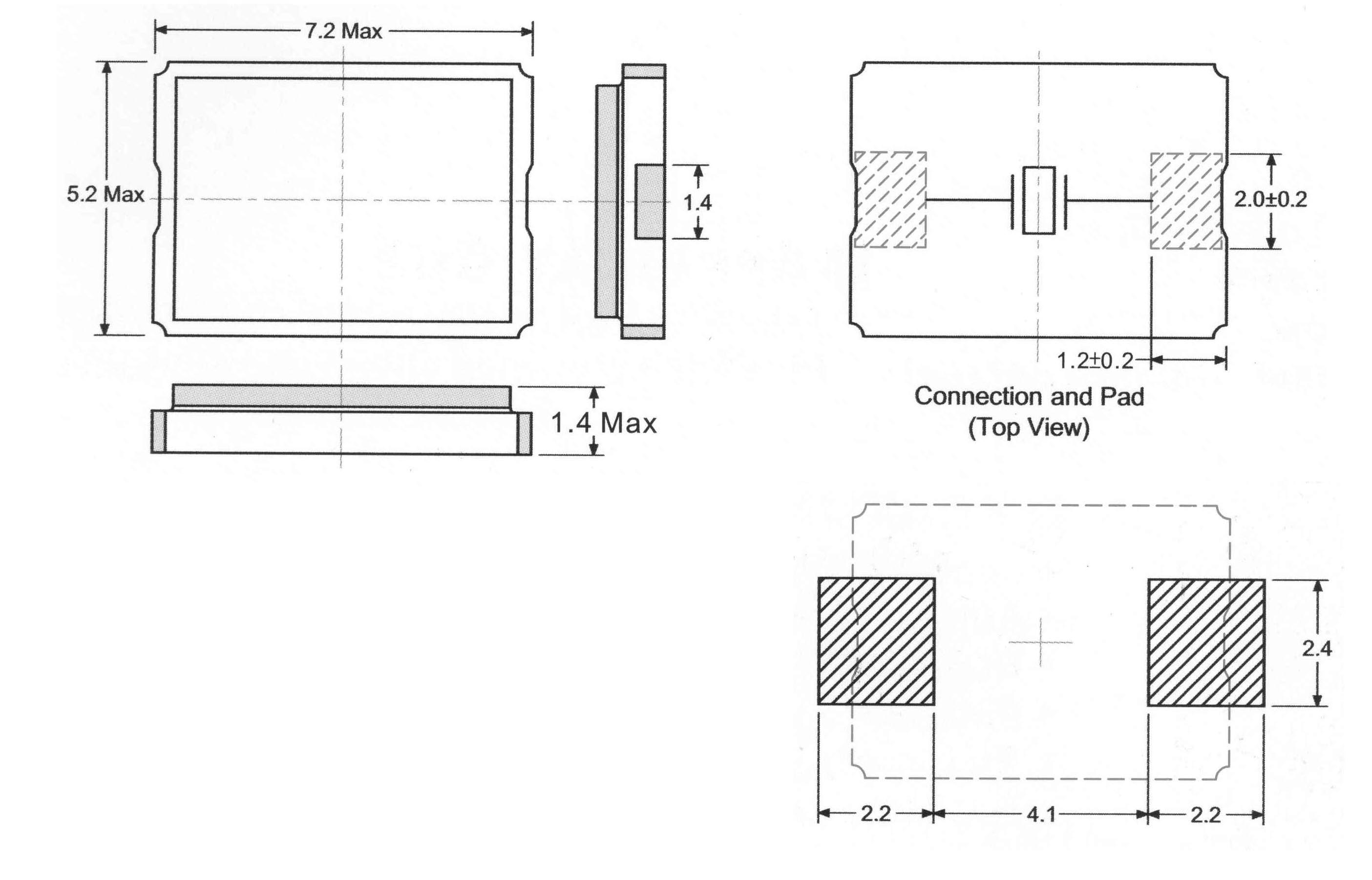

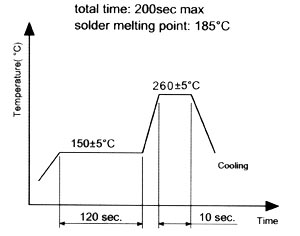

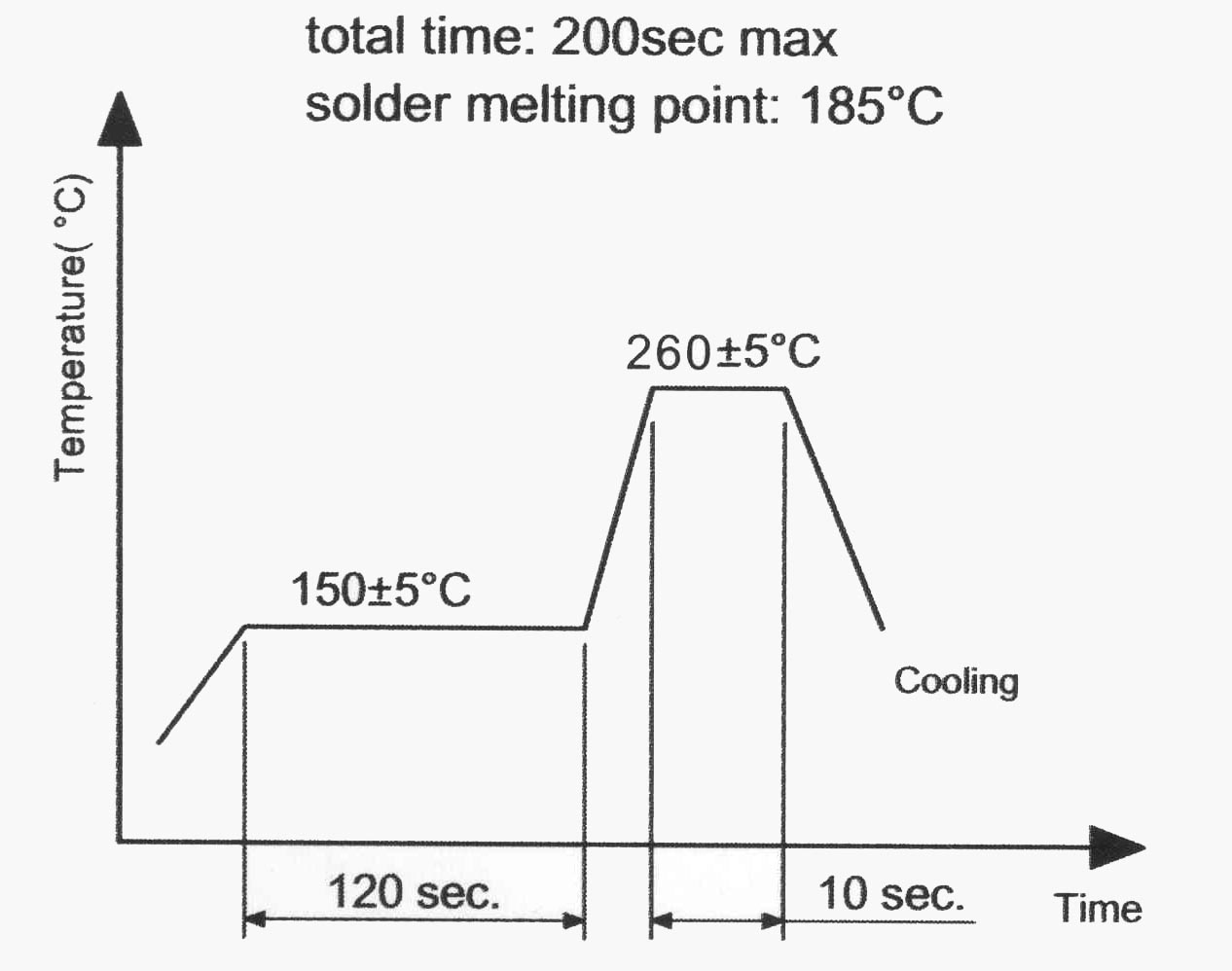

- Suitable for solder reflow.
|
|
 |
- Disc Drives, Hand Held Electronics.
|
 |
| Item / Type |
|
| Frequency Range |
6 - 125 Mhz |
| Frequency Tolerance (25°C) |
±10ppm, ±30ppm, ±50ppm or specify |
| Frequency Stability Over Operating Temperature Range |
&±10ppm, ±30ppm, ±50ppm or specify |
| Operating Temperature Range |
-10 - +70°C, -40 - +85°C or specify |
| Shunt Capacitance |
5.0pF Max |
| Drive Level |
1 - 100uW (10uW, 100uW typical) |
| Load Capacitance |
Series, 16pF, 20pF, 30pF, 32pF, or specify |
| Aging (25°C) |
±3ppm, ±5ppm/year Max. |
| Storage Temperature Range |
-55 - +125°C |
|
|
 |
| Frequency Range |
RR (ohms) |
Vibration mode |
| 6 - 8 Mhz |
120 max |
Fundamental / AT |
| 8 - 10 Mhz |
70 max |
Fundamental / AT |
| 10 - 20 Mhz |
60 max |
Fundamental / AT |
| 20 - 50 Mhz |
40 max |
Fundamental / AT |
| 50 - 80 Mhz |
80 max |
3rd Overtone / AT |
| 80 - 125 Mhz |
60 max |
3rd Overtone / AT |
|
|
 |
|
|
|
