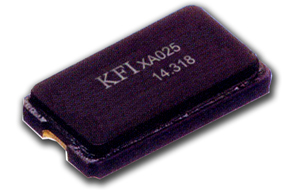

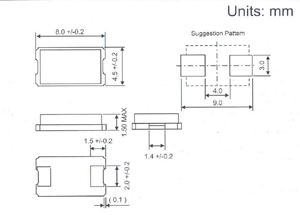

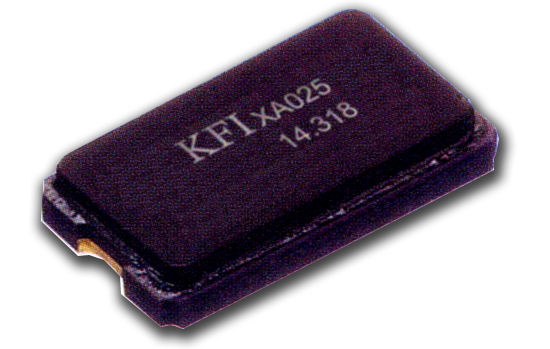

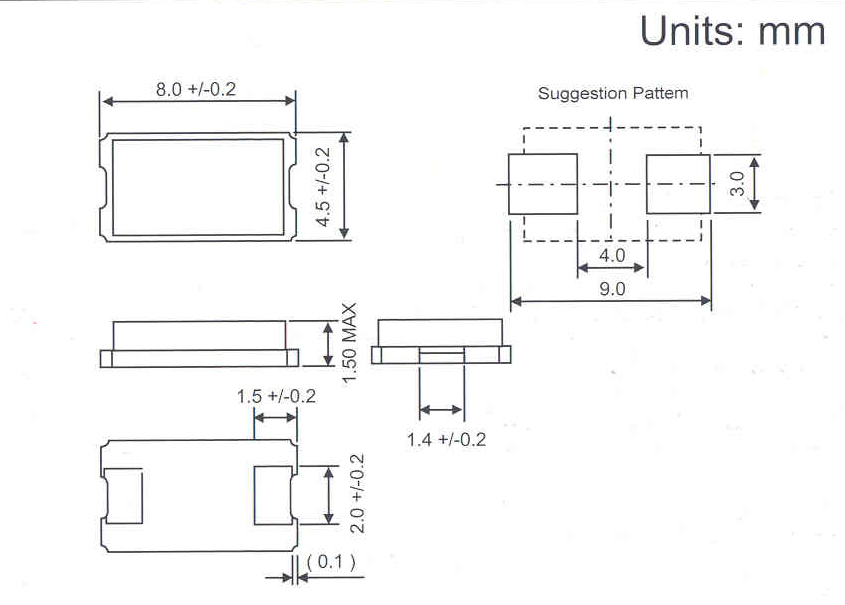

- Low profile 1.5mm; glass sealed crystal units.
- Ceramic package assures high reliability.
- Tight tolerance and stability available.

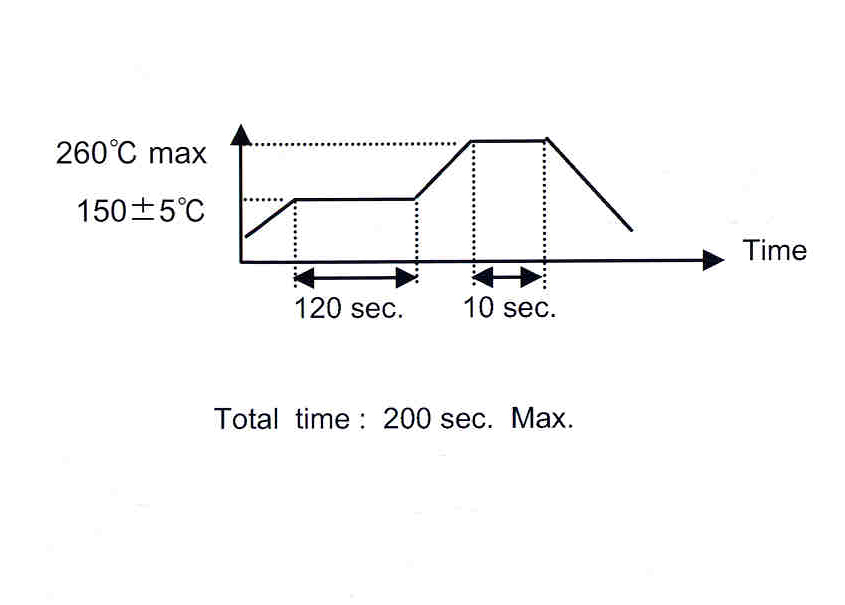

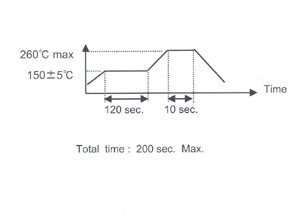

- Designed for automatic mounting and reflow soldering.
- Reasonable cost and good delivery performance.
- Lead free parts are available
|
|
|
Item / Type |
|
Frequency Range |
10 - 80 MHz |
Frequency Tolerance (25°C) |
±30ppm or specify |
Frequency Stability Over Operating Temperature Range |
±50ppm or specify |
Operating Temperature Range |
-10 - +70°C or specify |
Shunt Capacitance |
5pF Max |
Drive Level |
1 - 100uW (50uW typical) |
Load Capacitance |
Series, 6pF, 10pF, 16pF, 20pF or specify |
Aging (25°C) |
±3ppm/year Max. |
Storage Temperature Range |
-40 - +85°C |
|
|
|
|
Fundamental |
8 |
9.8304 |
10 |
11.0592 |
12 |
14.318 |
15.36 |
16 |
17.734 |
18.432 |
20 |
22.118 |
24 |
24.576 |
25 |
27 |
29.498 |
30 |
40 |
48 |
3rd Overtone |
40 |
48 |
50 |
80 |
