  • Seam sealed crystal units.
  • Extremely small SMD type crystal units.
  • High precision and frequency stability.
  • Extremely good for reducing EMI effect.
  • Lead Free Parts.
  • Bluetooth Wireless communication, DSC, PDA, Mobile phone.
Item / Type
Frequency Range 24 - 50 Mhz
Frequency Tolerance (25°C) ±10,  ±20, ±30 ppm or specify
Frequency Stability Over Operating Temperature Range ±10,  ±20, ±30 ppm or specify
Operating Temperature Range -30 - +85°C or specify
Shunt Capacitance 5pF Max
Drive Level 10uW typical (100uW max.)
Load Capacitance 9pF,10pF,12pF,16pF,20pF,30pF or specify
Aging (25°C) ±3ppm/year Max.
Storage Temperature Range -55 - +125°C

Fundamental 12 13 14.318 15.36 16
19.2 19.5 19.68 20 22
22.576 22.5792 24 26 32
48

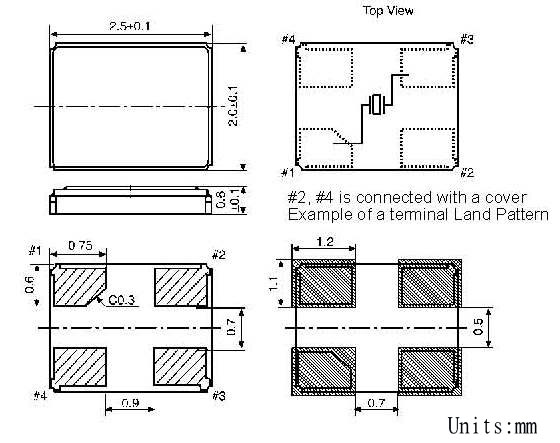

Dimensions    Click For Larger View Reflow Condition    Click For Larger View
